Power line pole

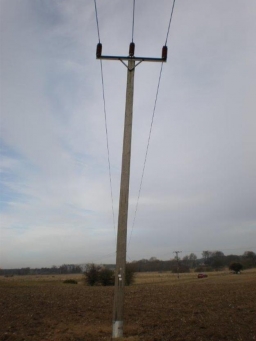

From point A, the power line pole is seen at an angle of 18 degrees. From point B to which we get when going from point A 30m away from the column at an angle of 10 degrees. Find the height of the power pole.

Correct result:

h =  11.5669 m

Solution:

c=30 m A=18 B=10 t0=tanA=tan18 =0.32492 t1=tanB=tan10 =0.176327=0.17633 h/x=tanA=t0 h/(x+c)=tanB=t1  x=h/t0 h/(h/t0+c)=t1 h=t1 (h/t0+c) h=t1/t0 h+c t1 h(1t1/t0)=c t1  h=c t11t1/t0=30 0.176310.1763/0.3249=11.5669 m



We would be pleased if you find an error in the word problem, spelling mistakes, or inaccuracies and send it to us. Thank you!






Showing 0 comments:
avatar




Tips to related online calculators
See also our right triangle calculator.
See also our trigonometric triangle calculator.
Try conversion angle units angle degrees, minutes, seconds, radians, grads.


We encourage you to watch this tutorial video on this math problem: video1
